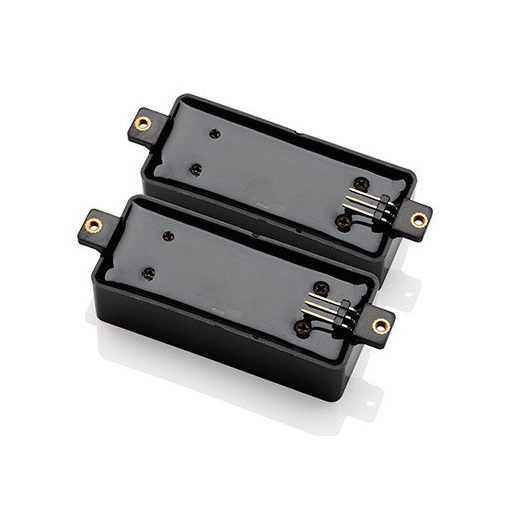

Gitár pickup fekete, Mini Humbucker szett
The Mini-72 set uses individual Alnico 2 Rod magnets in a dual-coil format. No added steel , just mini-rods (.156 Dia). It’s kind of like having 2 Front-Tele Pickups side by side but fatter, from both the increased aperture and the use of Alnico 2 magnets. The Magnetic Strength is almost 1000 Gauss like a Strat Pole Piece (.187 Dia) but with the added Iron of the Alnico 2. A mix… A match… and basically a whole lot of fun. See the data sheet for the different specs for each pickup.
Keep in mind that the Mini-72 set Pickups have a narrow string width sense and aren’t suitable in the bridge position of Floyd Rose equipped guitars. It was designed for the Gibson Tune-o-matic bridge width, and so it shall remain. The maximum string width should be about 2 inches (51mm).
The Pole Pieces are spaced .395” (10 mm) apart, with an overall width of 1.975” (50.1mm).
No need for string grounding, so no shock hazard. Low-impedance output so you can sound the same through a cable as well as wireless. and on top of that a 2 pickup system only requires 1.3 Milli-Amps of 9 Volt battery power.
IN THE BOX
PACKAGE INCLUDES EMG'S EXCLUSIVE SOLDERLESS INSTALL SYSTEM:
2 25K VOLUME POT
2 25K TONE POT
1 BATTERY BUS
1 STEREO OUTPUT JACK
1 TWO PICKUP IN/OUT BUS
2 PAIR MOUNTING SCREWS AND SPRINGS
2 PICKUP CABLES
4 CONNECT CABLES
1 OUTPUT CABLE
1 BATTERY CABLE
